Building Structure
5 members in a group with 1 member missing in the picture.
5 members in a group with 1 member missing in the picture.
Project 1

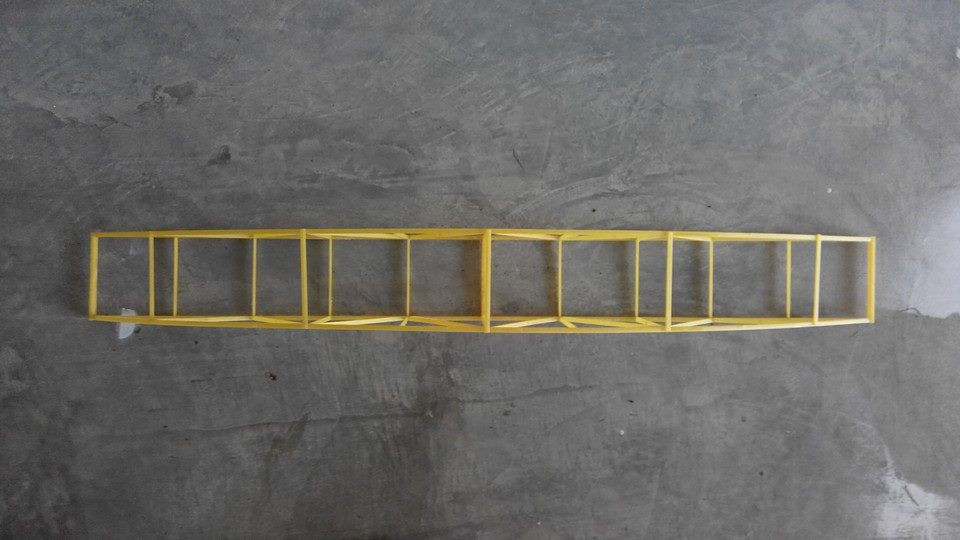

The objective of this project is to design a perfect truss bridge which has both aesthetic value and minimal usage of construction material. The main material of the bridge is fettucine, with the allowance of the application of glue for connection and layering purposes.
Click to view Final Report.
The Bridge failed as it topple over due to the increasing weight acting on it, and mainly caused by poor workmanship.
Test 2 is slightly shorter than test 1, to do a comparison based on the height of the bridge.
Test 2 is slightly shorter than test 1, to do a comparison based on the height of the bridge.

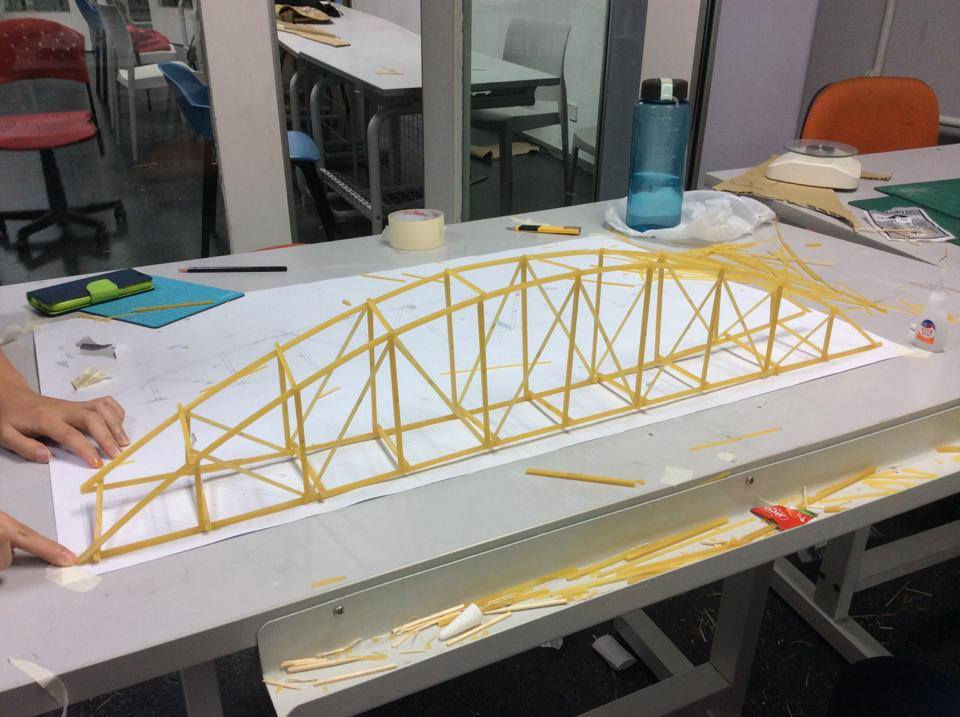

Test 1
Test 2
It is concluded that the taller the arch, the stronger the bridge will be.
It is concluded that the taller the arch, the stronger the bridge will be.
Test 3
Final Test
Existing Building's Ground Floor Plan
Existing Building's Ground Floor Plan
Project 2
For project 2, we were to design an extension for an existing bungalow, and to determine the structural plan for the extension. After that, individually we were required to calculate the shear force and bending moment acting on the respective 6 beams and 4 columns.
